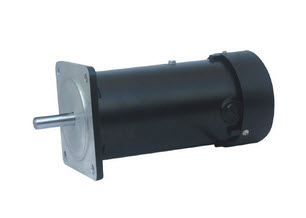

Vertical brush DC motor













Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan
  • Certification: CE, UL
  • Type: DC motor
  • Torque: 2.73Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1750rpm
  • Continuous Current(A): 6.06A
  • Output Power: 500W
  • Voltage(V): 110V
  • Installation Method: vertical
  • g.w: 9.5kg
  • carton size: 38*19*20.5cm

Specifications

brush DC motor
1)UL,CE
2)110v,500w,1750rpm,dia:113mm
3)Widely used.
4)High efficiency, easy adjust speed,low price

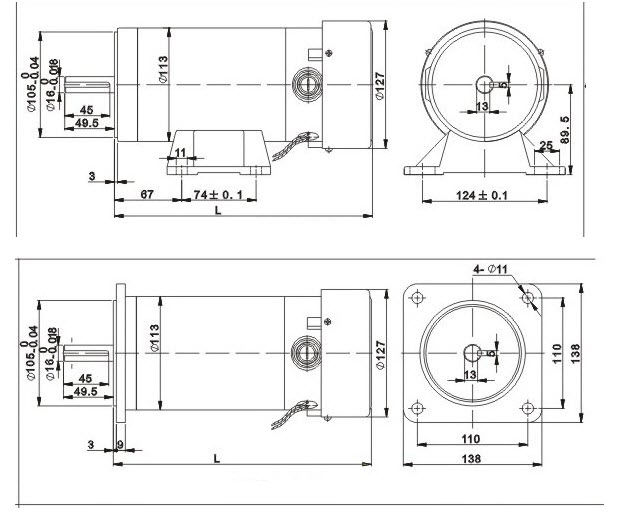

◊ Drawing

◊ Specification

◊ Model Description

113

ZSV

220

-

150

-

1900

1.

2.

3.



4.



5.


1.Body OD:113-fuselage outside diameter of 113mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:220-220V.DC input

4.Power:150-rated output power of 150HP

5.Speed:1900-Rated speed 1900rpm
